Super Strength-Saving Crimping Plier |
| |
SFC-0510GY
|
|
|
| |
|
|
|
|
-
For crimping Non-insulated terminals .
-
Crimping range: 16-8AWG(1.5-10mm2 )
-
Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
-
Scientific leverage design saves energy when operating
-
Release locking if operated error
-
Energy saving by humanization. handle design.
|
| |
|
| |
|
| |
Capacity |
0.5-10mm2 |
AWG |
22-8AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
| |
| |
| |
| |
|
| |
|
|
| |
|
|
SFC-2056GF |
|
|
| |
|
|
|
|
Range of Application |
For Insulate and Non- Insulated twin cable end-sleeves |
| |
Capacity |
2×0.5-6mm2 |
AWG |
2×22-10AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFC-625GF |
|
|
| |
|
|
|
|
Range of Application |
For Insulate and Non- Insulated cable end-sleeves |
| |
Capacity |
6,10,16,25mm2 |
AWG |
10-4AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
| |
|
|
|
|
|
|
SFC-1035GF |
|
|
|
|
|
|
|
Range of Application |
| For Insulate and Non- Insulated cable end-sleeves |
| |
Capacity |
10,16,25,35mm2 |
AWG |
8-2AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFC-2616GF |
|
|
| |
|
|
|
|
Range of Application |
For Insulate and Non- Insulated twin cable end-sleeves |
| |
Capacity |
2×6,10,16mm2 |
AWG |
2×10-6AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
| |
| |
| |
|
|
| |
|
|
SFC-2550GF |
|
|
| |
|
|
|
|
Range of Application |
For Insulate and Non- Insulated cable end-sleeves |
|
Capacity |
25,35,50mm2 |
AWG |
4-1AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|

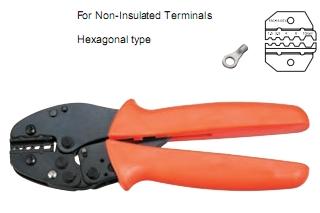

SFC-1510TX |
|
|
| |
|
|
 |
|
Range of Application |
For Non- Insulated Terminals |
Hexagonal type |
| |
Capacity |
1.5,2.5,4,6,10mm2 |
AWG |
16-8AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
|
|
| |
|
|
SFC-416TX |
|
|
| |
|
|
|
|
Range of Application |
For Non- Insulated Terminals |
| Hexagonal type |
| |
Capacity |
4,6,10,16mm2 |
AWG |
12-6AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
|
|
| |
|
|
SFC-0510TD |
|
|
| |
|
|
|
|
Range of Application |
| For Non- Insulated Terminals |
| Point Type |
| |
Capacity |
0.5-1.5,1.5-2.5,2.5-4,4-6,6-10mm2 |
AWG |
22-8AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
|
|
| |
|
|
SFC-616TD |
|
|
| |
|
|
|
|
Range of Application |
| For Non- Insulated Terminals |
| Point Type |
| |
Capacity |
4-6,6-10,10-16mm2 |
AWG |
12-6AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
|
|
| |
|
|
SFC-056YJ |
|
|
| |
|
|
|
|
Range of Application |
| For Insulated Terminals |
| |
Capacity |
0.5-1.5,1.5-2.5,4-6mm2 |
AWG |
22-10AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
|
|
|
| |
|
|
SFC-156B |
|
|
| |
|
|
|
|
Range of Application |
| For Insulated tabs and receptacles |
| |
Capacity |
1.5,2.5,4-6mm2 |
AWG |
22-10AWG |
Length |
223mm |
Weight |
0.73kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
| |
|
|
SFA-056YJ |
|
|
| |
|
|
|
|
-
For crimping insulated terminals and butt-connectors.
-
Crimping range: 22-10AWG(0.5-6mm2 )
-
Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
-
Scientific leverage design saves energy when operating
-
Release locking if operated error
-
Provided with two set of dies in handles for using easily.
-
Energy saving by humanization. handle design.
|
| |
|
| |
Capacity |
0.5-1.5,1.5-2.5,4-6mm2 |
AWG |
22-10AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
|
| |
|
|
| |
|
|
SFA-0510TD |
|
|
| |
|
|
|
|
Range of Application |
For Non- Insulated Terminals |
| |
Capacity |
0.5-1.5,1.5-2.5,2.5-4,4-6,6-10mm2 |
AWG |
22-8AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFA-616TD |
|
|
| |
|
|
|
|
Range of Application |
For Non- Insulated Terminals |
| |
Capacity |
4-6,6-10,10-16mm2 |
AWG |
12-6AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFA-1510TX |
|
|
| |
|
|
|
|
Range of Application |
For Non- Insulated Terminals |
| |
Capacity |
1.5,2.5,4,6,10mm2 |
AWG |
16-8AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFA-416TX |
|
|
| |
|
|
|
|
Range of Application |
For Non- Insulated Terminals |
| |
Capacity |
4,6, 10,16mm2 |
AWG |
12-6AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFA-156B |
|
|
| |
|
|
|
|
Range of Application |
For Non- Insulated tabs and receptacles |
| |
Capacity |
1.5,2.5,4-6mm2 |
AWG |
20-10AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFA-2056GF |
|
|
| |
|
|
|
|
Range of Application |
For Insulate and Non- Insulated twin cable end-sleeves |
| |
Capacity |
2×0.5,0.75,1.0,1.5, 2.5, 4, 6 mm2 |
AWG |
2×22-10AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFA-0510GF |
|
|
| |
|
|
|
|
Range of Application |
For Insulated and Non- Insulated cable end-sleeves |
| |
Capacity |
1.5-10mm2 |
AWG |
22-8AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFA-2616GF |
|
|
| |
|
|
|
|
Range of Application |
For Insulate and Non- Insulated twin cable end-sleeves |
| |
Capacity |
2×6,10,16 mm2 |
AWG |
2×10-6AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFA-625GF |
|
|
| |
|
|
|
|
Range of Application |
For Insulate and Non- Insulated cable end-sleeves |
| |
Capacity |
6,10,16,25mm2 |
AWG |
10-4AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFA-1035GF |
|
|
| |
|
|
|
|
Range of Application |
For Insulate and Non- Insulated cable end-sleeves |
| |
Capacity |
10,16,25,35mm2 |
AWG |
8-2AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
|
|
SFA-2550GF |
|
|
| |
|
|
|
|
Range of Application |
For Insulate and Non- Insulated cable end-sleeves |
| |
Capacity |
25,35,50mm2 |
AWG |
4-1AWG |
Length |
243mm |
Weight |
0.75kg |
|
| |
| |
| |
| |
| |
|
|
| |
| |
|
